Instructions Vip Pro MegaMini Bluetooth Spy Earpieces
What is Vip Pro MegaMini Bluetooth Spy Earpieces?
A Vip Pro MegaMini Bluetooth Spy Earpiece is a wireless device that connects directly to your mobile phone via Bluetooth, allowing you to receive calls and transmit sound to the hidden earpiece without the need for an inductor, with a range of up to 10 meters.
It includes a compact Bluetooth microphone that can be easily hidden underclothing and features a rechargeable battery for up to 25 hours of discreet use.
With which Hidden Earphones does it work?
Vip Pro MegaMini Bluetooth only works with Vip Pro MegaMini.
In addition, the inductor piece with the integrated highly sensitive microphone can be hidden anywhere within 10 metres. This microphone is highly recommended for whispering.
Features
- Reduced Size Without Cables
The Vip Pro MegaMini microphone is very easy to hide underclothing thanks to its small size and the fact that it has no cables.
- Induction Technology
Electromagnetic induction makes it possible to avoid inhibitors and increase autonomy at the cost of poorer sound quality.
- Integrated Microphone
The integrated microphone in the microphone piece allows communication with signs like coughing or even with whispers.
- Bluetooth Connection
The microphone and the headset connects via bluetooth to the cell phone working as a common bluetooth headset for calls or recordings.
- Battery of Hours
The microphone requires charging and the vip pro earpiece requires a LIR640 battery, with battery life of up to 2.5 hours.
Content
1 – Microphone Bluetooth
2 – Vip Pro MegaMini Earpiece
3 – 1/2 Batteries LIR640
4 – USB Charging Cable
Instructions
Step 0 - Original CooMax Product
Verify that it is an original CooMax product by checking that the brand name on the cards included with the product is the same as the one in the image.

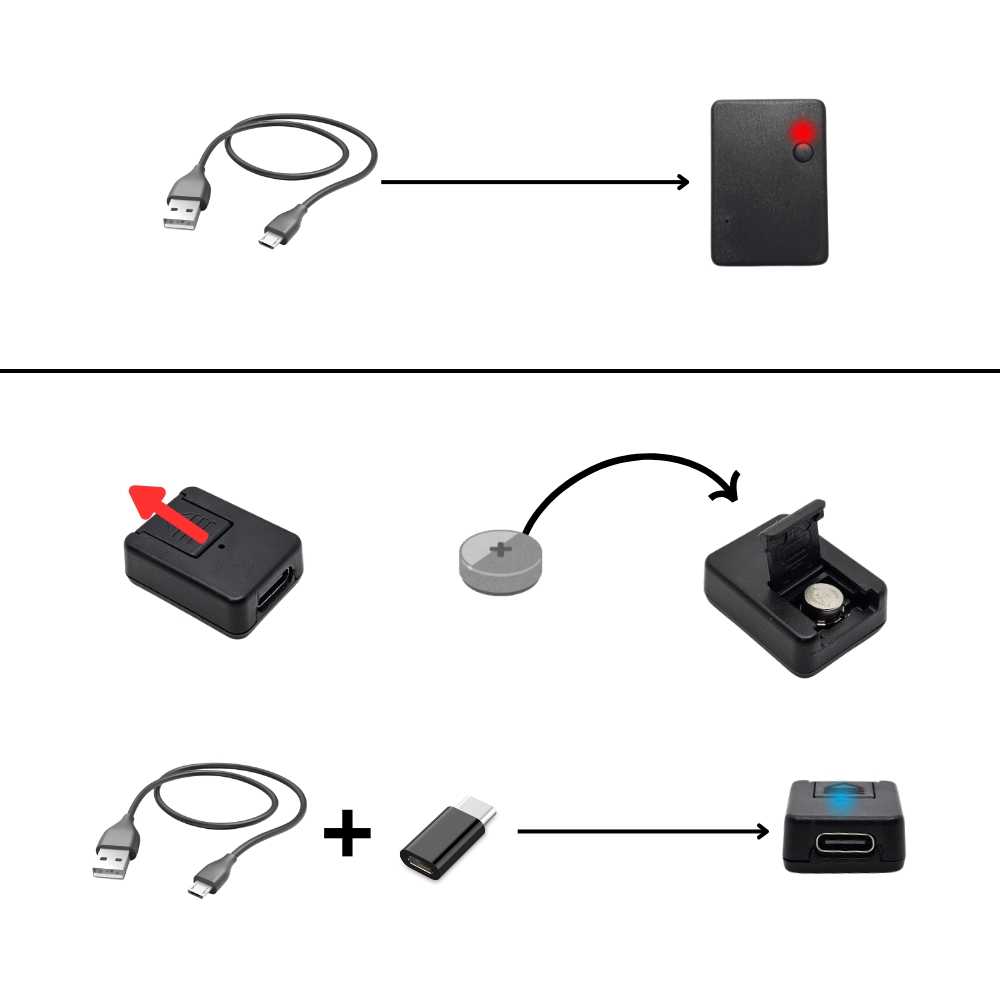

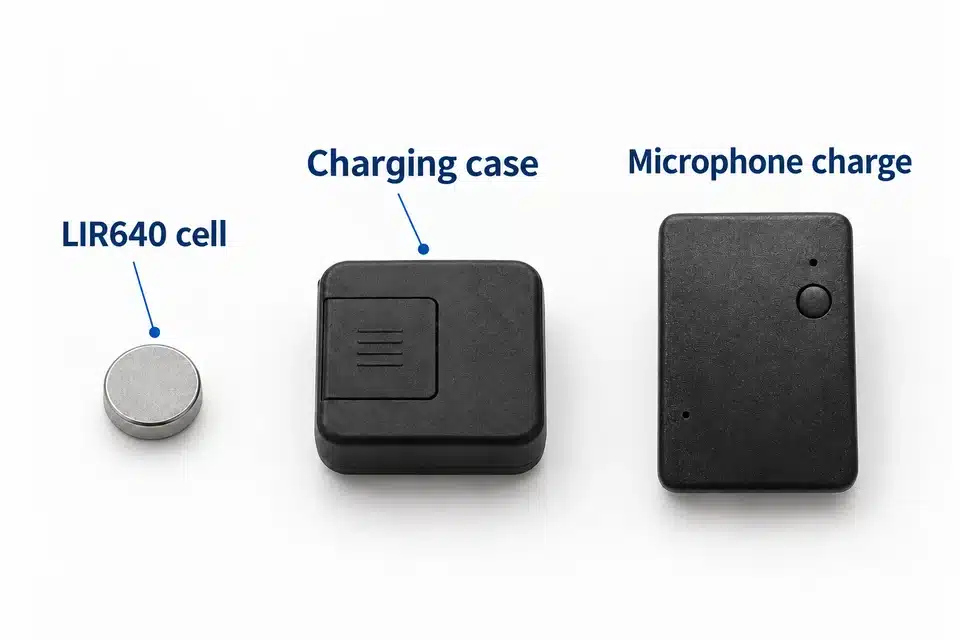

Step 1 - Charge Bluetooth Microphone and Battery
The microphone and the battery of the earpiece have a low or no charge at the factory and need to be charged before first use.
To charge the bluetooth microphone connect it using the included USB-Type-C charging cable and the included 1A charging plug (or to the USB of a computer). A red LED will light up while charging and will turn off when the charge is 100%. When disconnected, it will turn on automatically and we can turn it off by pressing and holding the button for 5 seconds as we will see in the next step.
To charge the battery of the earpiece (battery above or below the case pad) open the compartment of the charging case by sliding the piece indicated in the image with a red arrow, insert the battery with the positive pole upwards (letters of the brand and model of the battery is the positive pole) and close the compartment.
Step 2 - Switching On, Switching Off and Microphone

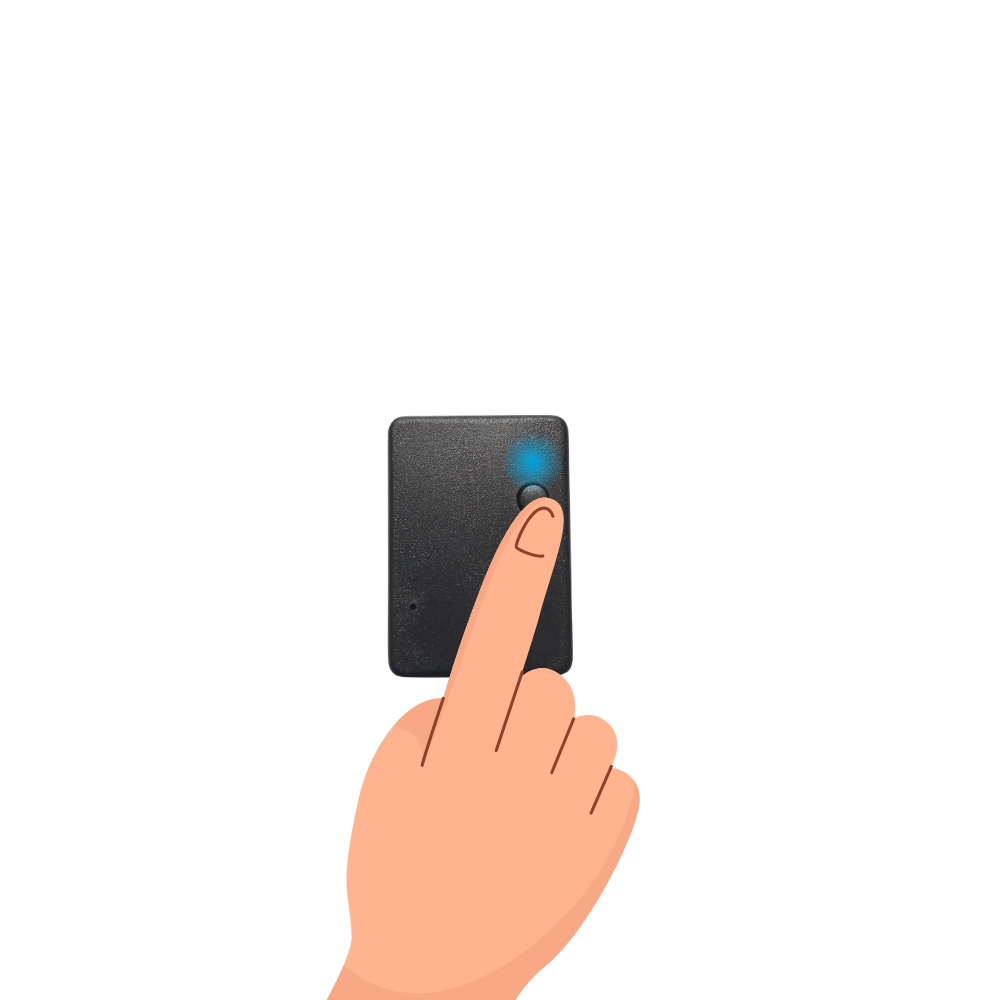

Turn on the microphone by pressing and holding the power button for 5 seconds until the blue LED flashes 3 times.
Then turn on the bluetooth on the mobile phone and connect to the device ‘bt01’. If the device ‘bt01’ does not appear, press the power button again, as it is possible that it was switched on and we have switched it off. It flashes when it is switched on.
To switch off the microphone, press and hold the button again for 5 seconds. We can check that it has been switched off by checking on our mobile phone that it is not connected to the Bluetooth ‘bt01’ (with the battery of the earpiece removed).
Step 3 - Introduction Battery
Unscrew the black cover of the spy earpiece and insert the battery with the positive side facing up (where the letters of brand and model of battery are is the positive side).
Then screw the cap back on, making sure that it is screwed on correctly.
The battery begins to drain as soon as it is inserted into the spy earpiece and should be removed if not in use to avoid discharging the battery.
The battery model required for the vip pro spy earpieces is LIR640.
Step 4 - Clean Earpiece
First clean the ear thoroughly with a cotton swab, ear cleaning spray or water and dry it well. Next, clean the holes in the earpiece with a fine needle and be very careful to remove the wax that clogs the earpiece and can cause you to not hear anything.

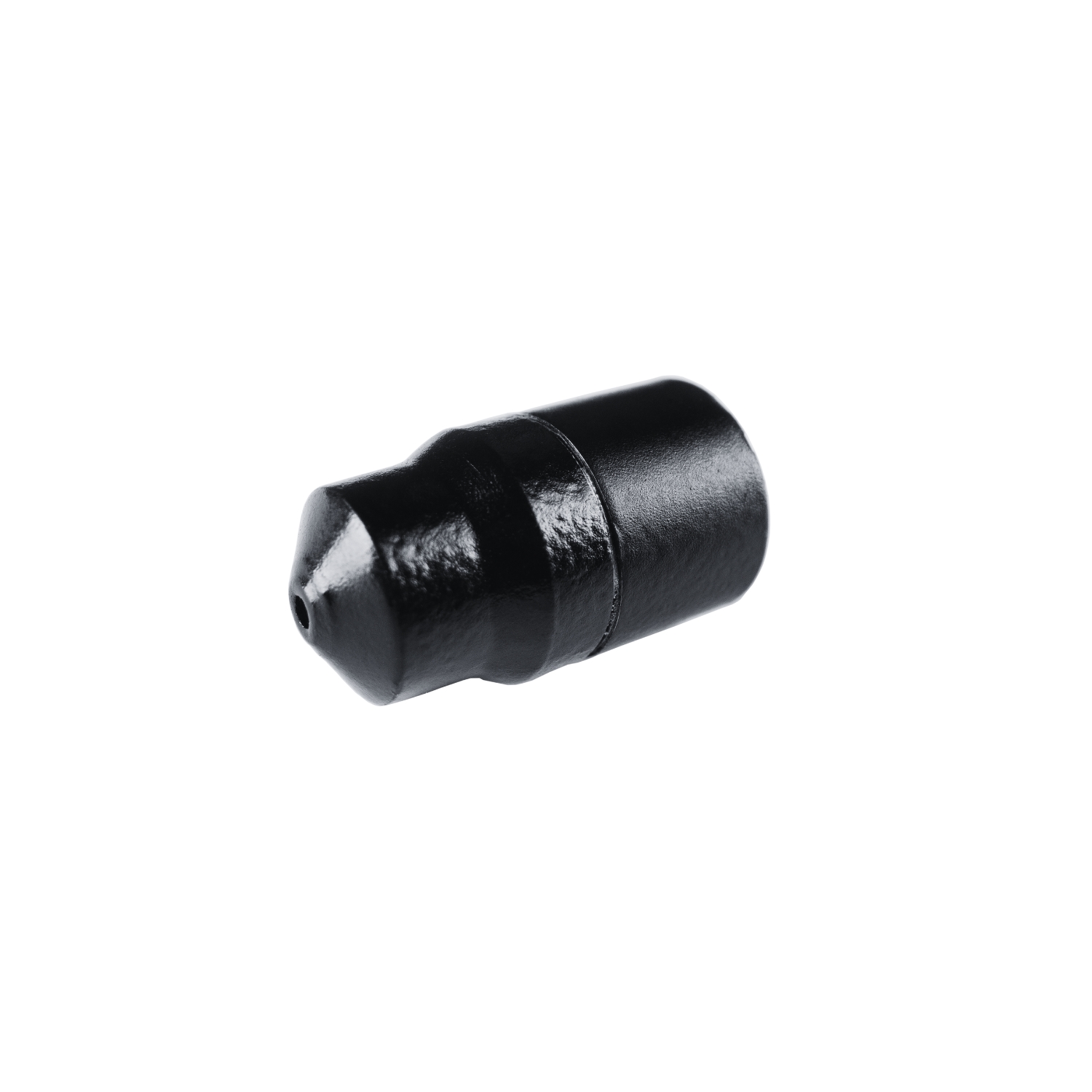

Step 5 - Introducing the Spy Earpiece
Insert the spy earpiece in the left ear. You can also insert it in the right ear, but we usually hear more in the left ear than in the right ear. You can push the spy earpiece with your finger. It is not recommended to push it in too far, as it is not necessary to hide it.

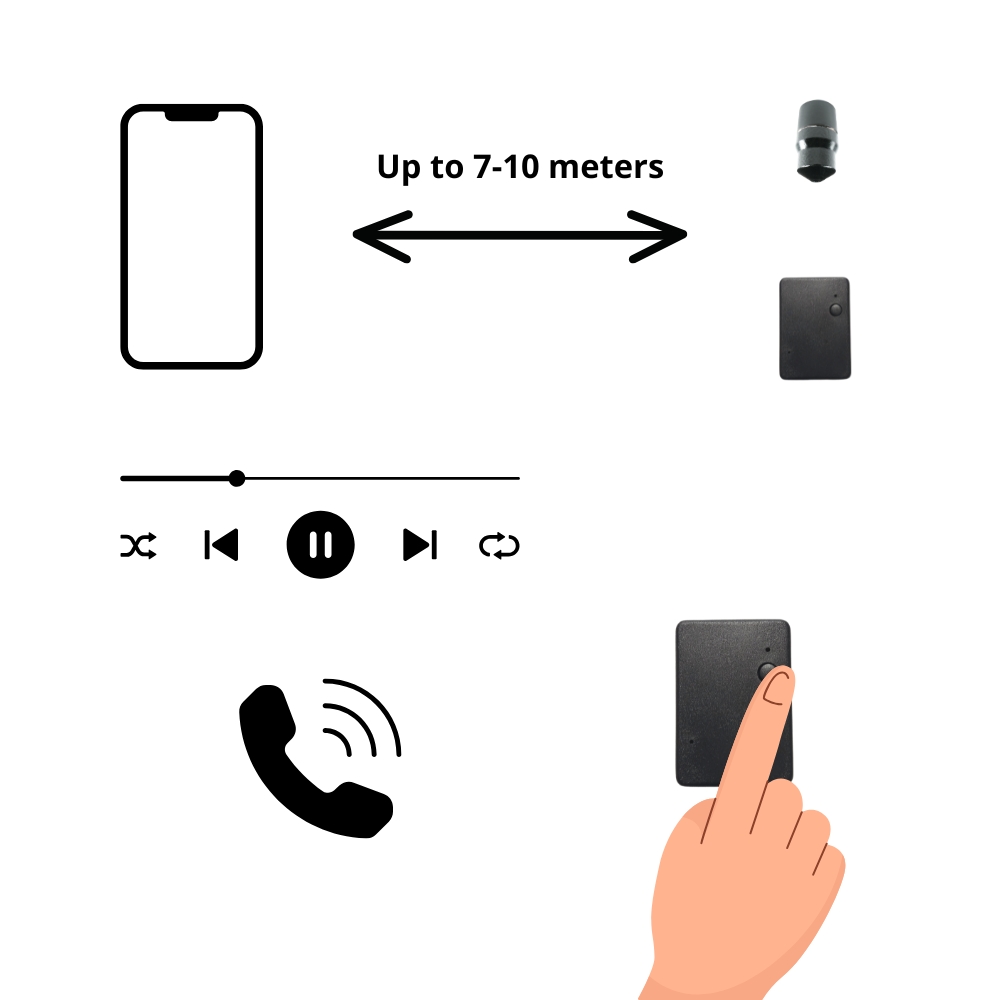

Step 6 - Functional Test
Place your mobile phone within 7-10 metres of the earpiece and microphone.
Play a song on your mobile and turn up the volume to listen through the earpiece.
It is possible to use only the earpiece without the bluetooth microphone and vice versa. To do so, simply switch on the earpiece or the microphone.
If the sound is too loud or if you do not hear anything please check common problems at the bottom of this page. Also remember that you can contact us via chat for help.
Step 7 - Microphone and Volume

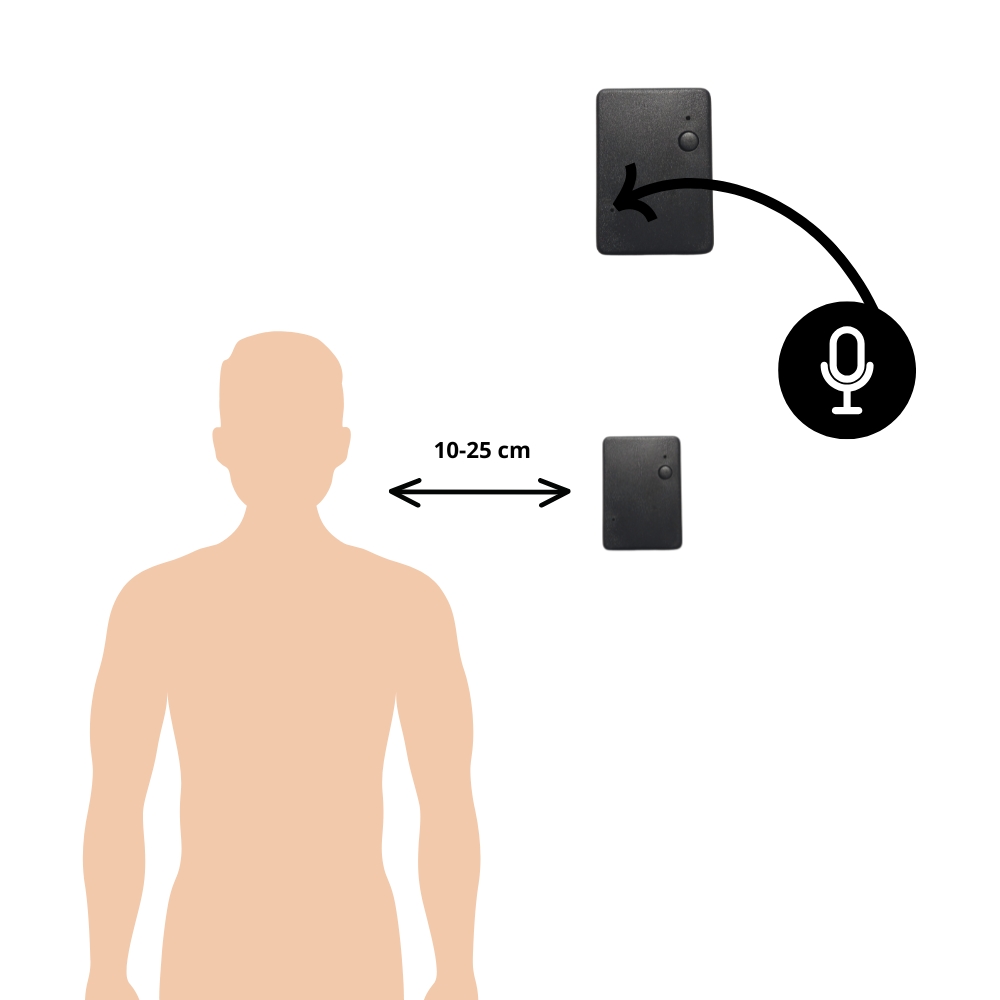

The concealed microphone should be placed more than 10 cm from the mouth, and less than 25 cm to improve pick-up.
The volume of the earpiece is controlled by pressing directly from the mobile phone.
⚠ Do not adjust the volume too high on the earpiece or it will be heard outside the ear.
Step 9 - Spy Earpiece Removal, Battery and Turn Off
The battery life of the microphone is approximately 12 hours and that of the earpiece is 2.5 hours.
To charge it, connect it to the mains with the charging cable included in the kit and in a charger up to 5V and 1A. On the microphone a red LED will come on when plugged in. When fully charged, the red light will turn off. On the battery charger, a blue light will come on while charging and will turn off when it is 100% charged.
Remove the spy earpiece by pulling the transparent thread with your fingers. If you are unsuccessful, you can try pulling the transparent thread with a pair of tweezers.
Finally, remember to disconnect the battery when you finish using the spy earpiece to prevent it from discharging. As long as the battery is inside, it continues to be consumed.
Frequent Problems
Spy earpieces can be complex products to set up and operate. Check below for common problems and how to solve them.
1 - Does not work
- Clean the holes in the earpiece with a fine needle and be very careful to remove the wax that clogs the earpiece and can cause you to not hear anything.
- Check that the battery is charged. If it has been left in the spy earpiece for a long period, it will be flat and a new battery should be used. The battery discharges even when not in use.
- Unscrew the black cap on the spy earpiece and insert the battery with the positive side facing up (where the letters of brand and model of battery are is the positive side).
- Screw the cap back on, making sure that it is screwed on correctly.
Place the microphone within 10 meters of the earphone and the spy earpiece in your ear.
Then play a song and turn the volume up to maximum. You can also try a call by turning up the volume.
If you still can’t get it to work, please get in touch with us via chat.
2 - I hear nothing or very low
This is one of the most common problems with spy earpieces. There are several possible reasons why you hear little or nothing. We will carry out a series of tests:
- Clean the holes in the earpiece with a fine needle and be very careful to remove the wax that clogs the earpiece and can cause you to not hear anything.
- Check that the battery is charged. If it has been left in the spy earpiece for a long period, it will be flat and a new battery should be used. The battery discharges even when not in use.
- Unscrew the black cap on the spy earpiece and insert the battery with the positive side facing up (where the letters of brand and model of battery are is the positive side).
- Screw the cap back on, making sure that it is screwed on correctly.
Place the microphone within 10 meters of the earphone and the spy earpiece in your ear.
Then play a song and turn the volume up to maximum. You can also try a call by turning up the volume.
If you still can’t get it to work, please get in touch with us via chat.
3 - The volume is too loud or low
The volume is controlled by the phone.
⚠ Do not adjust the volume too high on the earpiece or it will be heard outside the ear.
4 - Microphone does not work
If the problem occurs with the integrated microphone, check:
- Microphone has been rebooted.
- Check that you are not accidentally covering the microphone.
- Try another mobile phone or tablet.
5 - I can't remove the spy earpiece
Remove the spy earpiece by pulling the transparent thread with your fingers. If unsuccessful, you can try pulling the transparent thread with tweezers. It is advisable to have someone else remove it for us as they will be able to see the thread better to pull it out with the tweezers.
Finally, remember to disconnect the battery when you have finished using the device to prevent it from discharging.
6 - The spy earpiece is no longer working.
- Check that the battery is charged. If it has been left in the spy earpiece even if you are not using it, it will be flat and a new battery should be used.
- Check that earwax is not clogging the spy earpiece speaker. If it is, carefully clean it out using a needle or pin. It may be necessary to perform this step every few uses.
Safety and Compliance
The following is important product information regarding safety and compliance to ensure proper and safe use of the product:
⚠ FAILURE TO FOLLOW THESE SAFETY INSTRUCTIONS COULD RESULT IN FIRE, ELECTRIC SHOCK OR OTHER DAMAGE OR INJURY.
⚠ WARNING: Do not use or store the product near other electronic equipment because the magnetic field from adjacent electrical equipment will seriously damage or may interfere with the product. Also do not use this product if you have hearing problems that may be affected, if you wear hearing aids, or if you are using a pacemaker or any electronic medical device.
® CooMax. All rights reserved.
Product specifications:
Model name: Vip Pro MegaMini Bluetooth Spy Earpieces
Model number:VPB-04
Product identifier: 4572964828
Product battery: Built-in Lithium-Ion battery 200 mAh
Batteries Included: 1/2 x Batteries Type LIR640
Operating temperature: 0 to 40ºC
Use of the Product: Do not expose your device or adapter to liquids. If your device or adapter gets wet, carefully unplug all cables without getting your hands wet and wait for the device and adapter to dry completely before plugging them back in. Do not attempt to dry your device or adapter with an external heat source, such as a microwave oven or hair dryer. If the device or adapter is damaged, discontinue use immediately. Use only the supplied accessories to power your device. To avoid risk of electric shock, do not touch the device or the cables connected to it during a thunderstorm. Cables and adapters are intended for indoor use only.
Legal Notice: PingOc Now S.L. is not responsible for the fraudulent or erroneous use of the product due to the lack of understanding or reading of the information in the instructions and precautions. This product is not a toy and should not be used contrary to applicable laws. If you have any questions you can contact us before using the product.
For EU customers: CooMax hereby declares that the type of radio equipment is in conformity with Directive 2014/53/EU.
Changes or modifications not expressly approved by the party responsible for compliance could void the user’s authority to operate the equipment. This equipment has been tested and comply with the limits for a Class B digital device, under Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation.
FCC Compliance: This equipment generates, uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures:
- Reorient or relocate the receiving antenna.
- Increase the separation between the equipment and the receiver.
- Connect the equipment into an outlet on a circuit different from that to which the receiver is connected.
- Consult the dealer or an experienced radio/TV technician for help.
This device complies with part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation. The device has been evaluated to comply with the general RF exposure requirement. The device may be used under unrestricted portable exposure conditions.
Radio Frequency Exposure Compliance: As a health protection measure, this device complies with the limits for exposure of the general public to electromagnetic fields according to Council Recommendation 1999/519/EC. This device may be worn on the body to prevent prolonged use of the device for more than 5 hours.
How to recycle your device properly: Disposal of certain electronic devices is regulated in some areas. Be sure to comply with local laws and regulations.
Additional information on safety and compliance: For additional information on safety, recycling and compliance or other important issues related to your device, please do not hesitate to contact us by email [email protected]
Limited Warranty: All official CooMax products have a minimum warranty of 2 years. This warranty may be extended or reduced depending on the country where the sale takes place, as it happens by law in Spain where it is extended to 3 years as established by the Decree-Law 7/2021 regarding the Warranty on the Sale of Consumer Goods. We reserve the right to deny the warranty of a product if it is found to have been used improperly or negligently by the customer. If you need to contact us due to a fault you can do so by email: [email protected]
